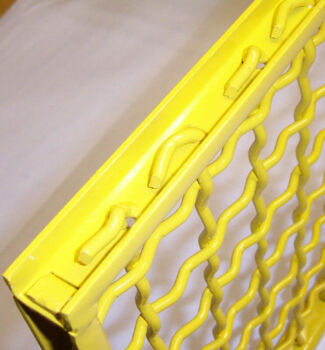

This view shows the wire ends that have been clinched down inside the channel.

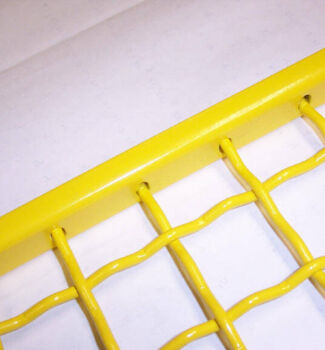

This view shows the outside of the channel frame member. Holes are punched into this member and the wires extended through the holes and then clinched over.

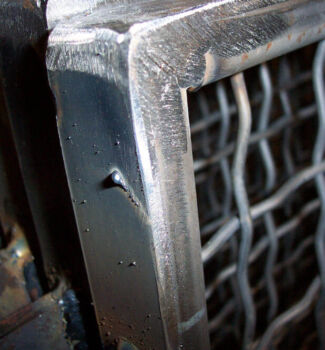

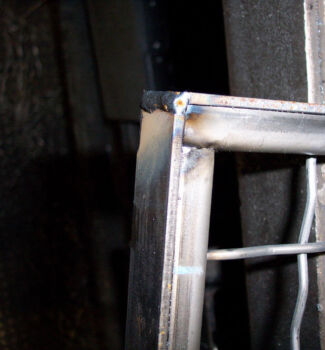

In this photo, the 1" x 1/2" x 1/8" channel is closed off with a piece of 1" x 1/8" steel flat.

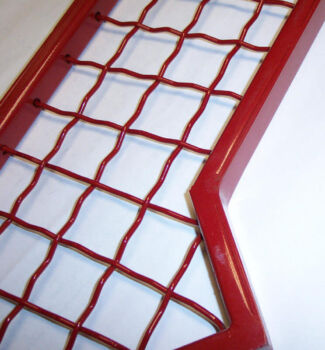

This infill panel shows how banding caps off the channel frame. Once this panel is ground smooth, painted, and installed it will look great.
This infill panel shows how banding caps off the channel frame. Once this panel is ground smooth, painted, and installed it will look great.
