150c and 200HD
150c: Standard Duty
Our 150c wire mesh partitions involve the industry standard specifications listed below. These partitions are easy to install and the configuration easy to change as your needs change.
200HD: Heavy Duty 6 Gauge Wire, 2″ Diamond Mesh
Components for 200HD material are similar to those for 150c, only heavier! The 200HD partitions have been used for applications such as:
- Prisons
- Gorilla cages
- School locker rooms
- Any area which requires panels that can take frequent and extensive abuse.
Indiana Wire Products prides itself on custom work; we can fabricate panels to any width up to 5 feet and any height up to 14 feet, so partitions will have a nice, uniform, organized appearance.
| Component | 150c | 200HD | Description |
| Wire | 10 gauge steel wire | 6 gauge steel wire | Triple crimped, machine woven |
| Mesh | 1 ½” diamond pattern | 2″ diamond pattern | Wires clinched into frame members |
| Vertical Frame Members | 1 ¼” x 5/8″ x .090 | 1 ½” x ¾ ” x .090 | “C” channel |
| Horizontal Frame Members | 1″ x ½” x .120 | 1 ½” x ¾ ” x .090 | “C” channel, mortise and tenoned at corners |
| Center Reinforcing Bars (150c) | 1″ x 3/8″ x .120 | Bolted through mesh | |
| Center Reinforcing Bars (200HD) | 1″ x ½ ” x .120 | Double channel, bolted through mesh | |
| Top Channel (“cap” channel) | 2 ¼” x 1″ x .090 | 3″ x 4.1# | Channel with “U”-Bolts for installation |
| Corner Post | 1 ¼” x 1 ¼” angle | 1 ½” x 1 ½” angle | With holes both sides to fit panels |
| Floor Shoes (150c) | 1 ¼” x ½” x .120 | Pressed steel with screw adjustment | |
| Floor Shoes (200HD) | 1 ½” in. sq. | Cast iron | |
| Door frames | 1 ¼” x ½” x .120 | Channel |
Supporting Parts

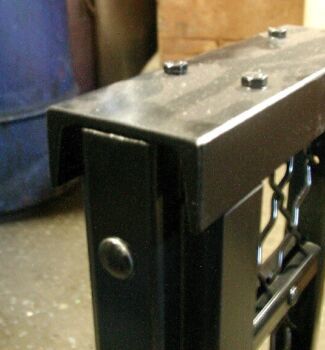

200HD Cap Channel

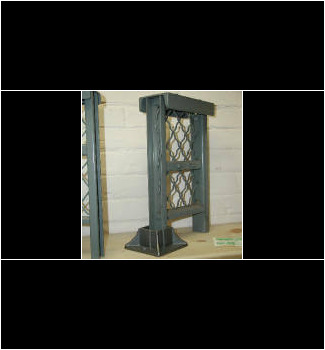

200HD Sample with Floor Socket

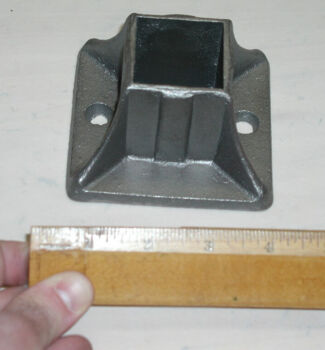

200HD Floor Socket

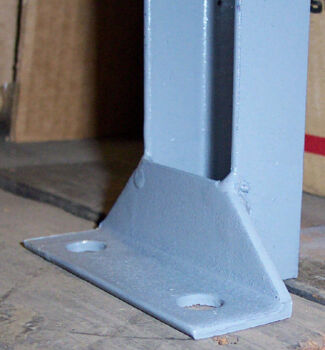

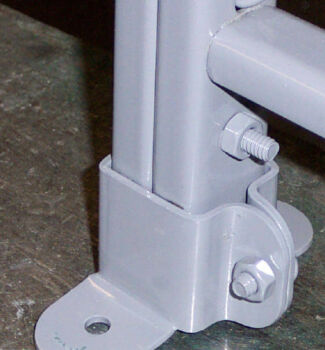

Legs in Shoe
3-Way Intersection Clip
